Discover Our Comprehensive Lighting Product Catalog
SPOTLIGHTS
Tasteful spotlights made from cast brass
01

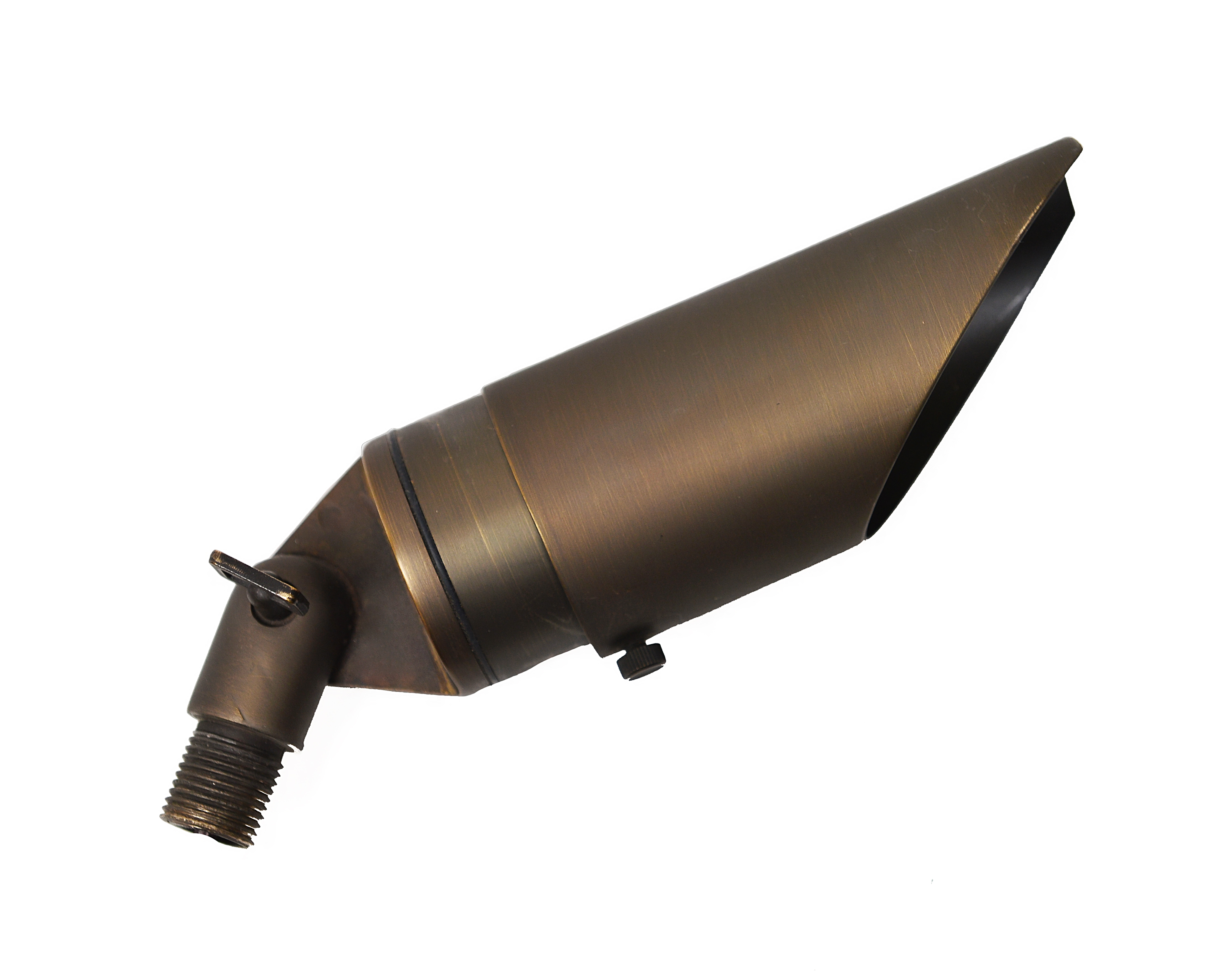

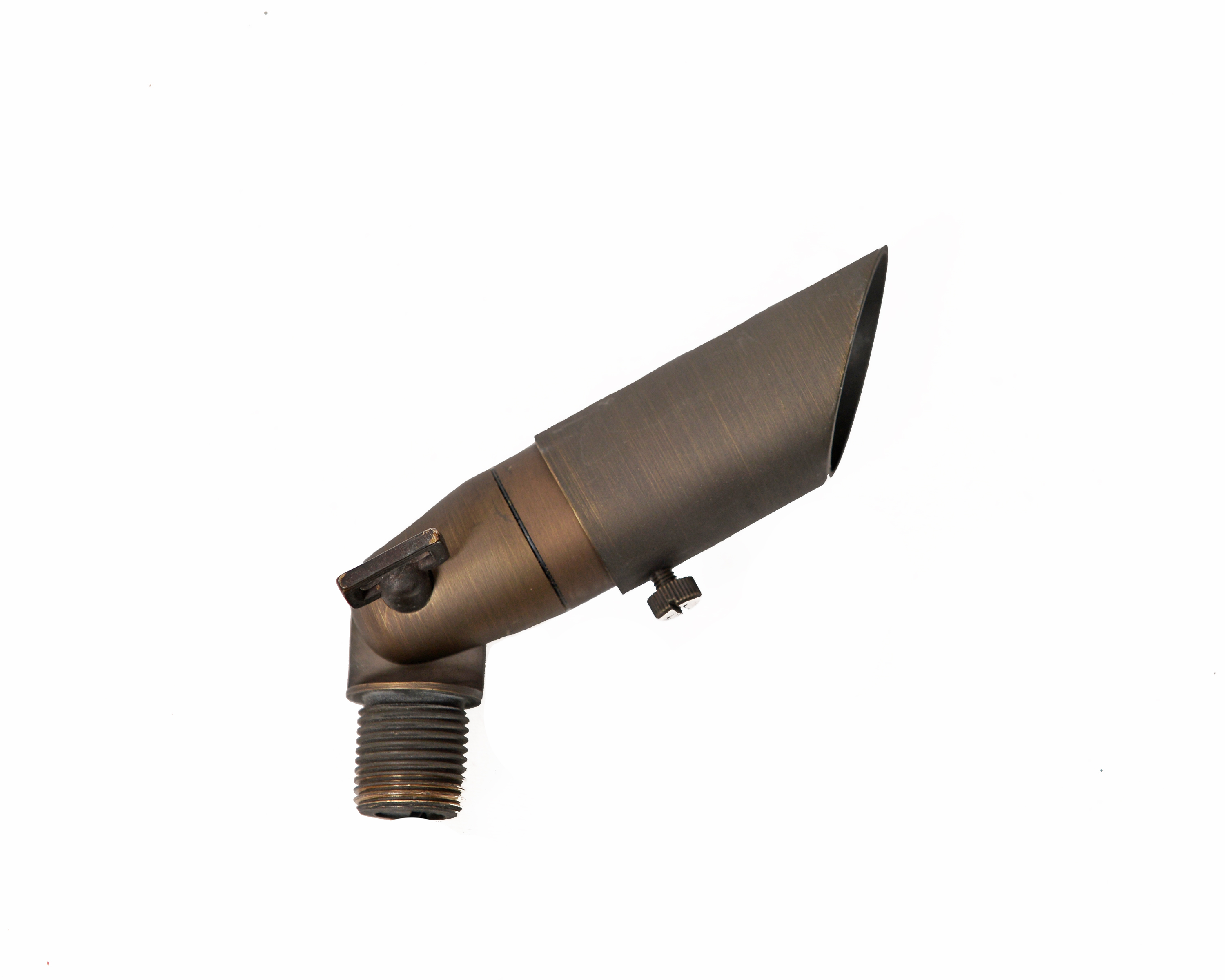

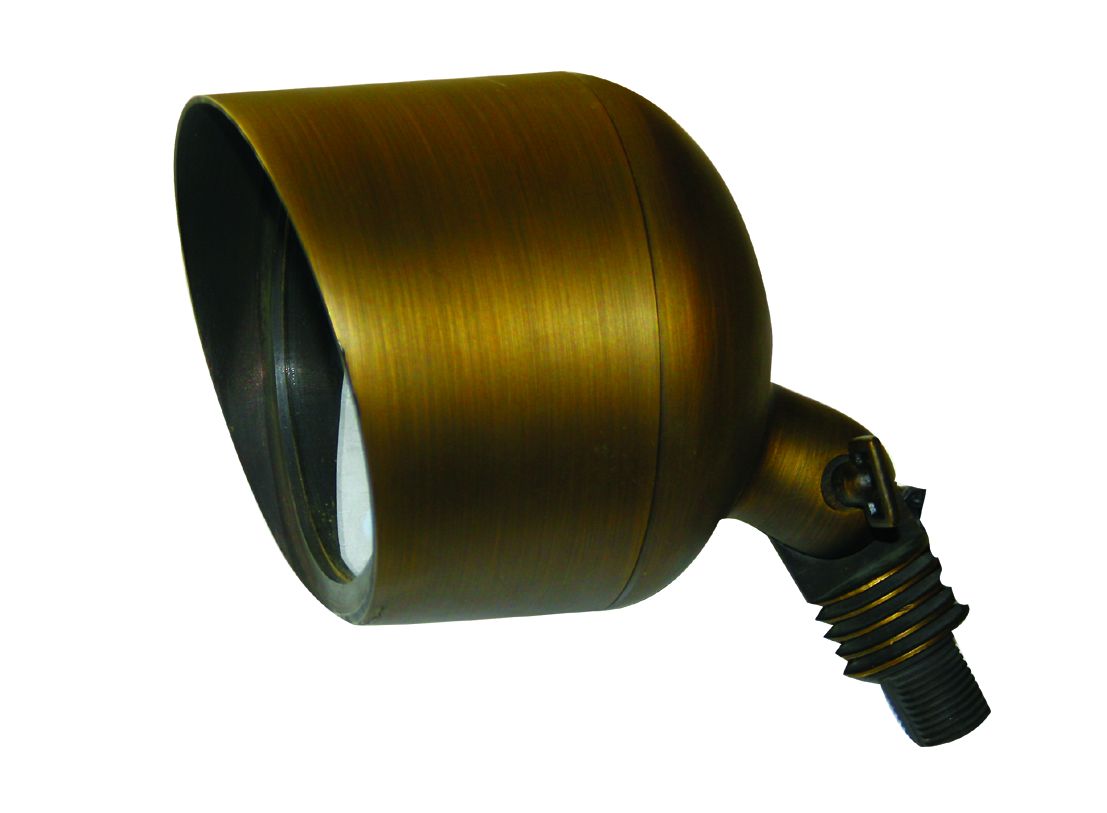

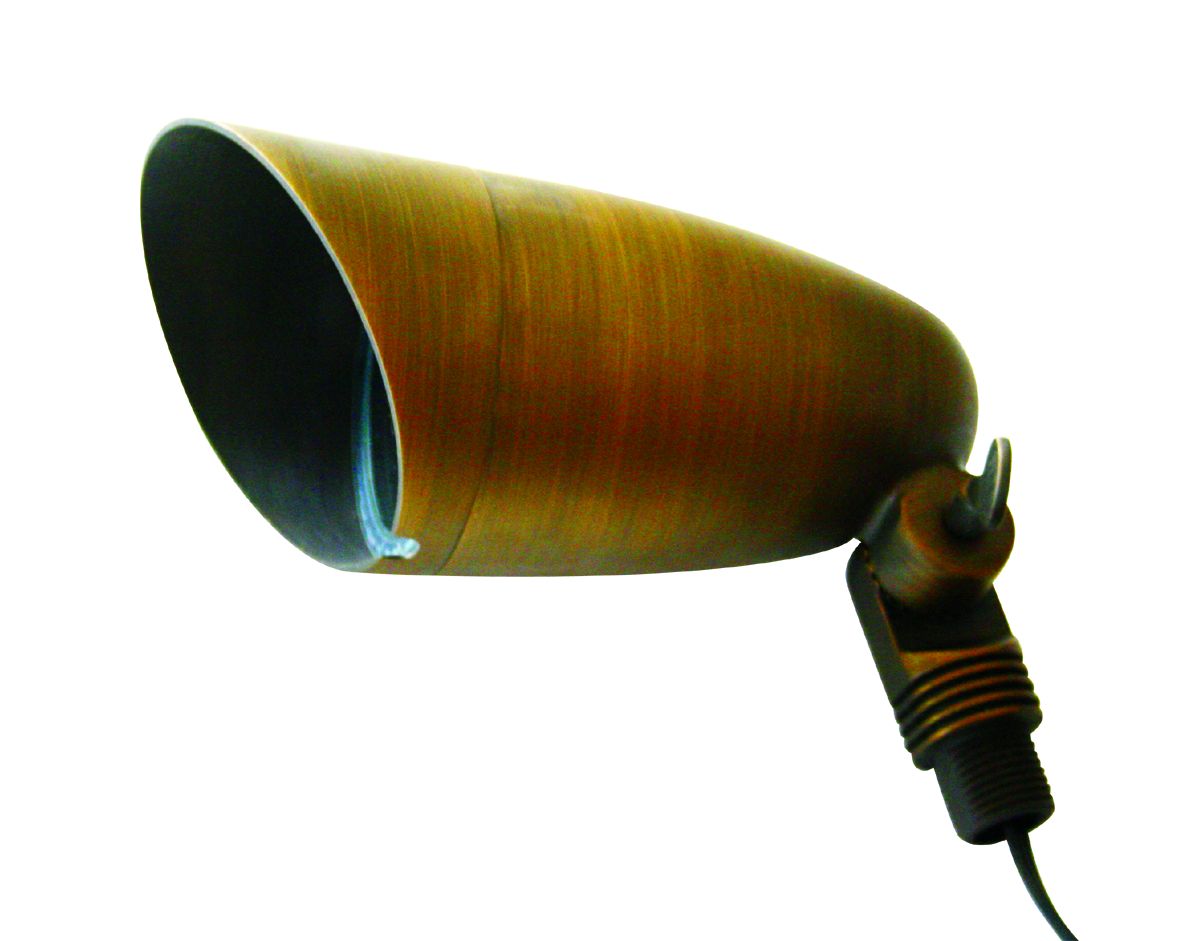

Model DSB1-B
Die cast spot light featuring 36" SPT2-16 wire, clear convex glass and accompanying plastic spike
(2-1/2" diameter x 8" long)
*Can be fitted with MR16 LED Lamp
02

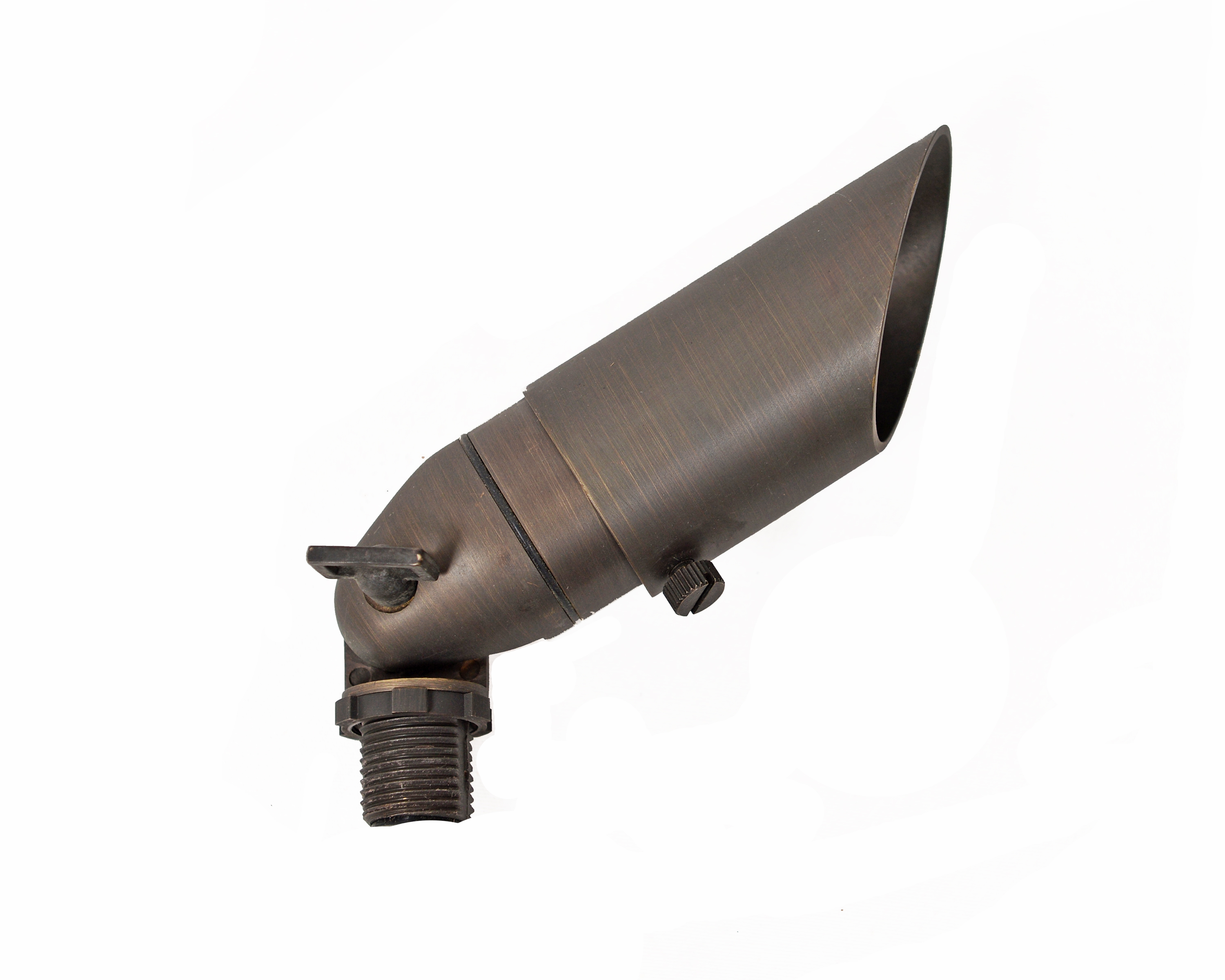

Model DSB2-B
Die cast spot light featuring 36" SPT2-16 wire, clear flat glass and accompanying large plastic spike
(1-3/4" diameter x 4" long)
*Can be fitted with MR1 LED Lamp
03
Model DSB3-B
Die cast spot light featuring 36" SPT2-16 wire, clear flat glass and accompanying plastic spike.
(1-1/2" diameter x 4" long)
*Can be fitted with MR8 LED Lamp
04
Model DSB5-B
Die cast spot light featuring 36"SPT2-16 wire, clear flat glass and accompanying plastic spike.
(1-1/2" diamter x 4" long)
*Can be fitted with MR16 or higher wattage LED Lamp
05
Model DSB6-B
Die cast spot light featuring 36" SPT2-16 wire, clear flat glass and accompanying large plastic spike.
(4-1/2" diameter x 8" long)
*Can be fitted with PAR36 LED Lamp
01 / 05
Model DSB1-B
Die cast spot light featuring 36" SPT2-16 wire, clear convex glass and accompanying plastic spike
(2-1/2" diameter x 8" long)
*Can be fitted with MR16 LED Lamp
01
Model DSB1-B
Die cast spot light featuring 36" SPT2-16 wire, clear convex glass and accompanying plastic spike
(2-1/2" diameter x 8" long)
*Can be fitted with MR16 LED Lamp
02
Model DSB2-B
Die cast spot light featuring 36" SPT2-16 wire, clear flat glass and accompanying large plastic spike
(1-3/4" diameter x 4" long)
*Can be fitted with MR1 LED Lamp
03
Model DSB3-B
Die cast spot light featuring 36" SPT2-16 wire, clear flat glass and accompanying plastic spike.
(1-1/2" diameter x 4" long)
*Can be fitted with MR8 LED Lamp
04
Model DSB5-B
Die cast spot light featuring 36"SPT2-16 wire, clear flat glass and accompanying plastic spike.
(1-1/2" diamter x 4" long)
*Can be fitted with MR16 or higher wattage LED Lamp
05
Model DSB6-B
Die cast spot light featuring 36" SPT2-16 wire, clear flat glass and accompanying large plastic spike.
(4-1/2" diameter x 8" long)
*Can be fitted with PAR36 LED Lamp
DECK LIGHTS & BASE
Subtle deck lights that can illuminate outdoor platforms
01

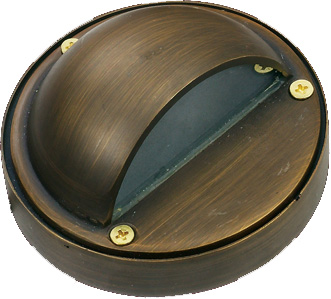

Model DL1
Die cast brass deck lights with built in LED Lamp
02

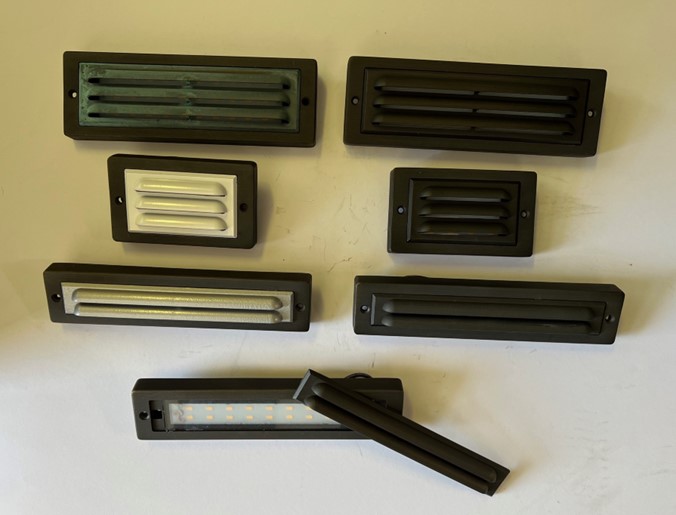

Heavy Duty Surface Mount Integrated Die Cast Step / Deck Lights
Bronze finish, available with removable cover and color options
Available in 3 different models:
Model CPSLD921: 3 louvers, 9 watt, 9" x 3" x 3/4"
Model CPSLD931: 2 louvers, 6 watt, 9" x 2" x 3/4"
Model CPSLD431: 3 louvers, 6 watt, 5" x 3" x 3/4"
01 / 02
Model DL1
Die cast brass deck lights with built in LED Lamp
01
Model DL1
Die cast brass deck lights with built in LED Lamp
02
Heavy Duty Surface Mount Integrated Die Cast Step / Deck Lights
Bronze finish, available with removable cover and color options
Available in 3 different models:
Model CPSLD921: 3 louvers, 9 watt, 9" x 3" x 3/4"
Model CPSLD931: 2 louvers, 6 watt, 9" x 2" x 3/4"
Model CPSLD431: 3 louvers, 6 watt, 5" x 3" x 3/4"
WALL MOUNTED FIXTURES & HANGING LIGHTS
Downward lighting options for showcasing hallways or pathways
01

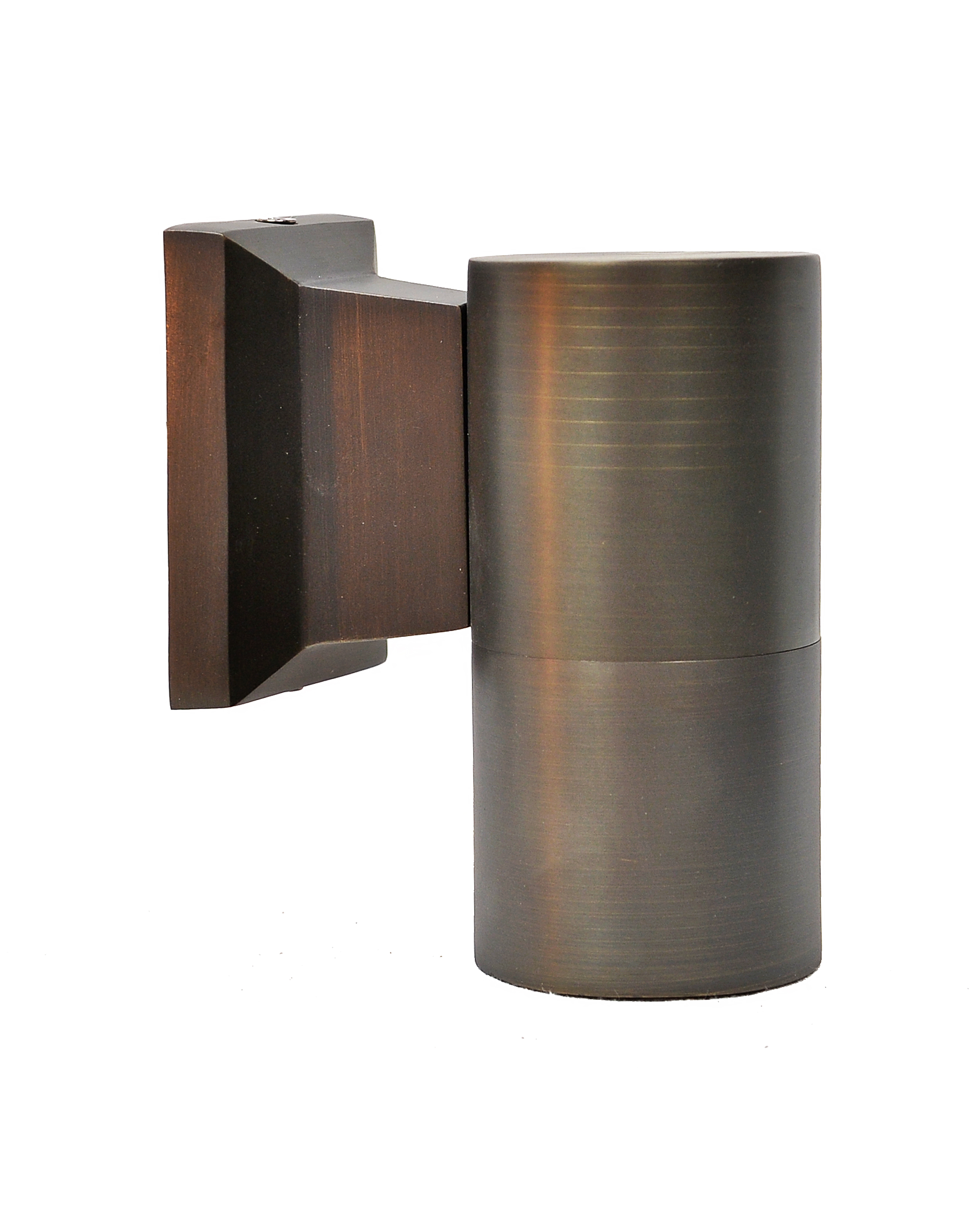

DC1 Down Light
Die cast brass, low voltage wall mounted light
Approximate size:
Height: 6.5"
Width: 2.5"
Depth: 3.5"
*Uses MR16 Lamp
02

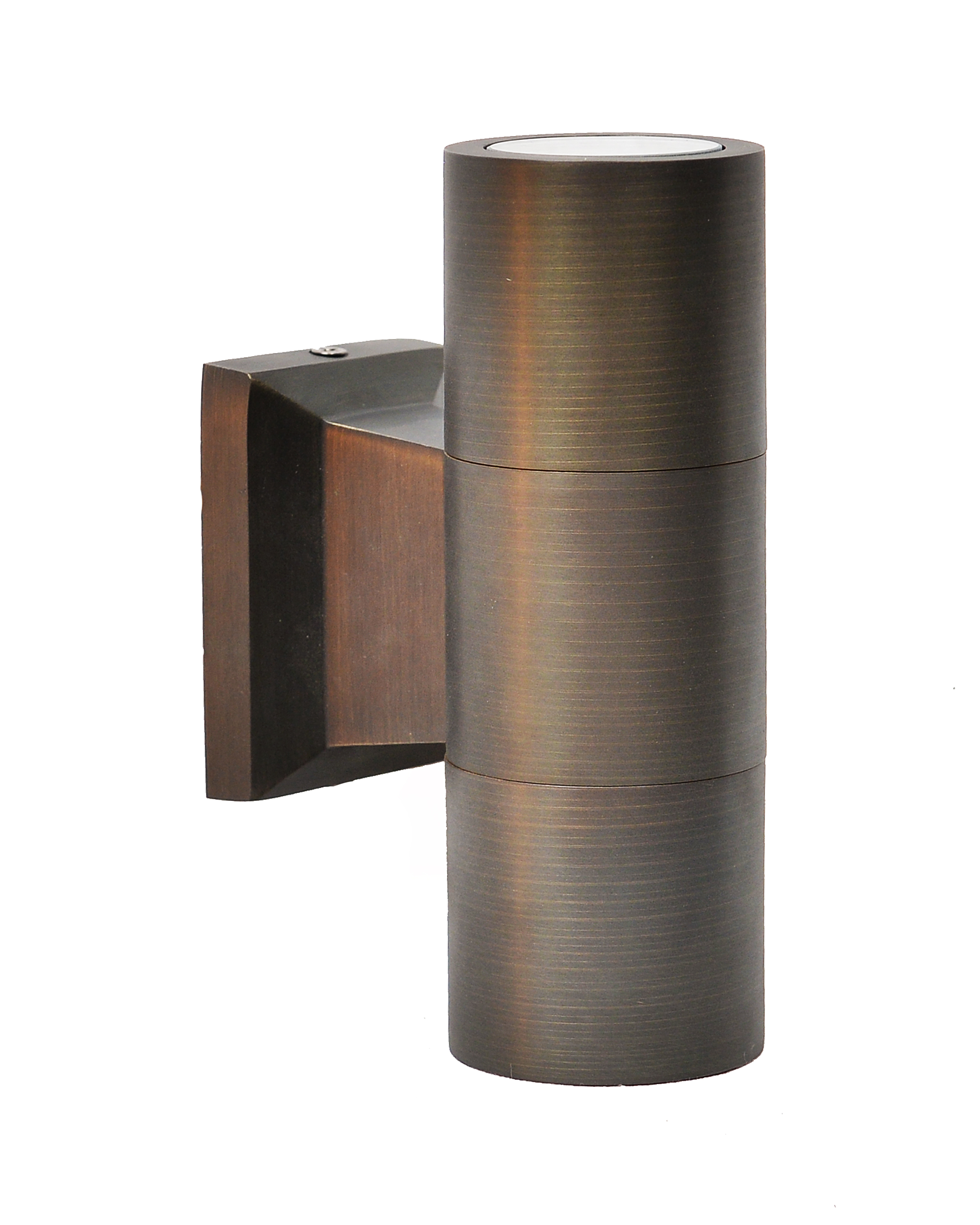

DC2 Up / Down Light
Die cast brass, low voltage wall mounted light
Approximate size:
Height: 5"
Width: 2.5"
Depth: 3.5"
*Uses MR16 Lamp
03

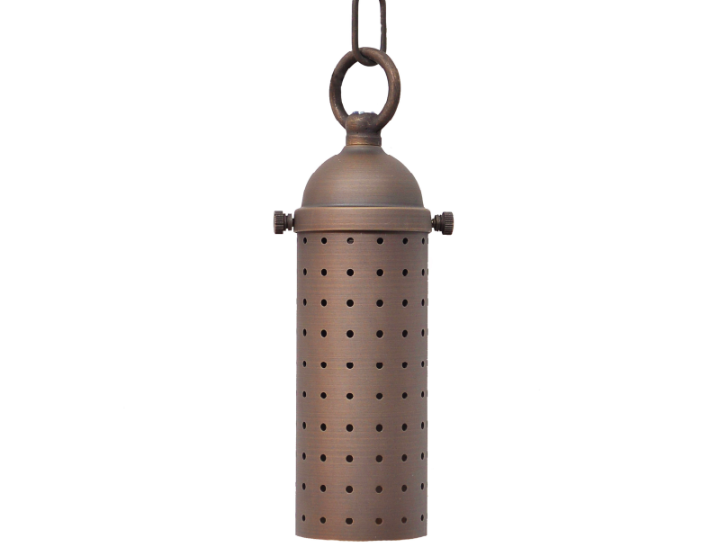

CP-HNG Hanging Light
Size 3/8"" Dia x 8-1/4"lg
Made of cast brass in antique bronze
Features phain Pendant & wire SPT-1W 19# 36" black wire w/ brass loop
01 / 03
DC1 Down Light
Die cast brass, low voltage wall mounted light
Approximate size:
Height: 6.5"
Width: 2.5"
Depth: 3.5"
*Uses MR16 Lamp
01
DC1 Down Light
Die cast brass, low voltage wall mounted light
Approximate size:
Height: 6.5"
Width: 2.5"
Depth: 3.5"
*Uses MR16 Lamp
02
DC2 Up / Down Light
Die cast brass, low voltage wall mounted light
Approximate size:
Height: 5"
Width: 2.5"
Depth: 3.5"
*Uses MR16 Lamp
03
CP-HNG Hanging Light
Size 3/8"" Dia x 8-1/4"lg
Made of cast brass in antique bronze
Features phain Pendant & wire SPT-1W 19# 36" black wire w/ brass loop
FLOODLIGHTS
High quality and bright flood lights made from cast brass
01

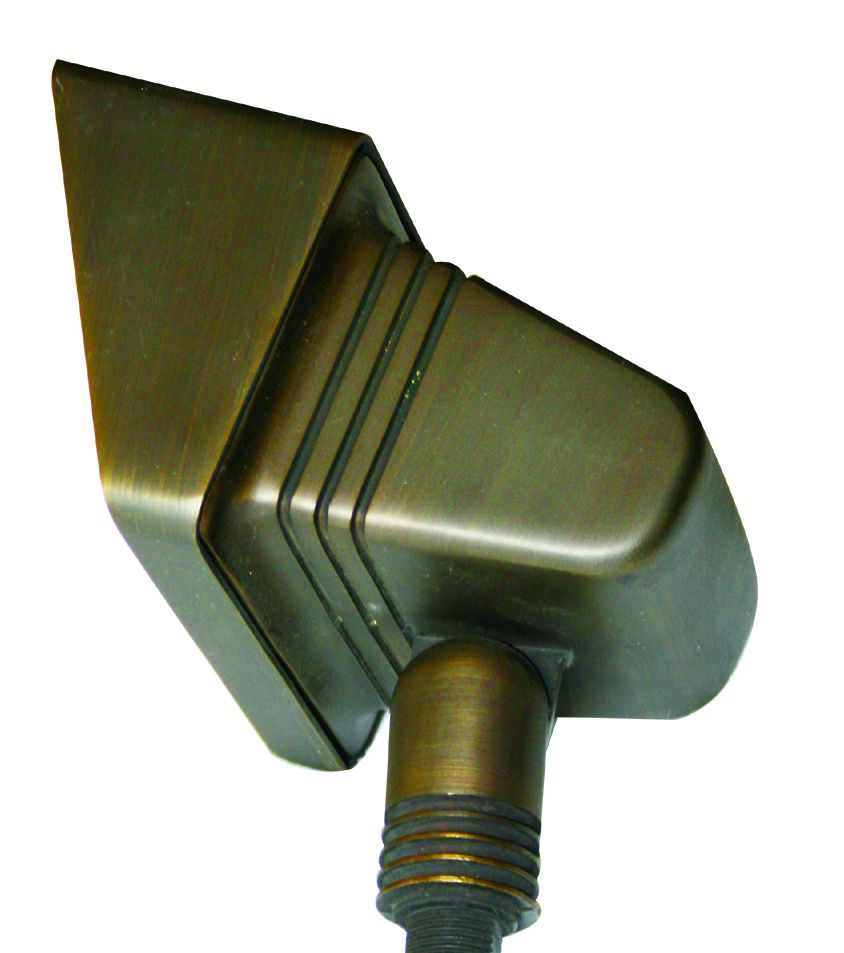

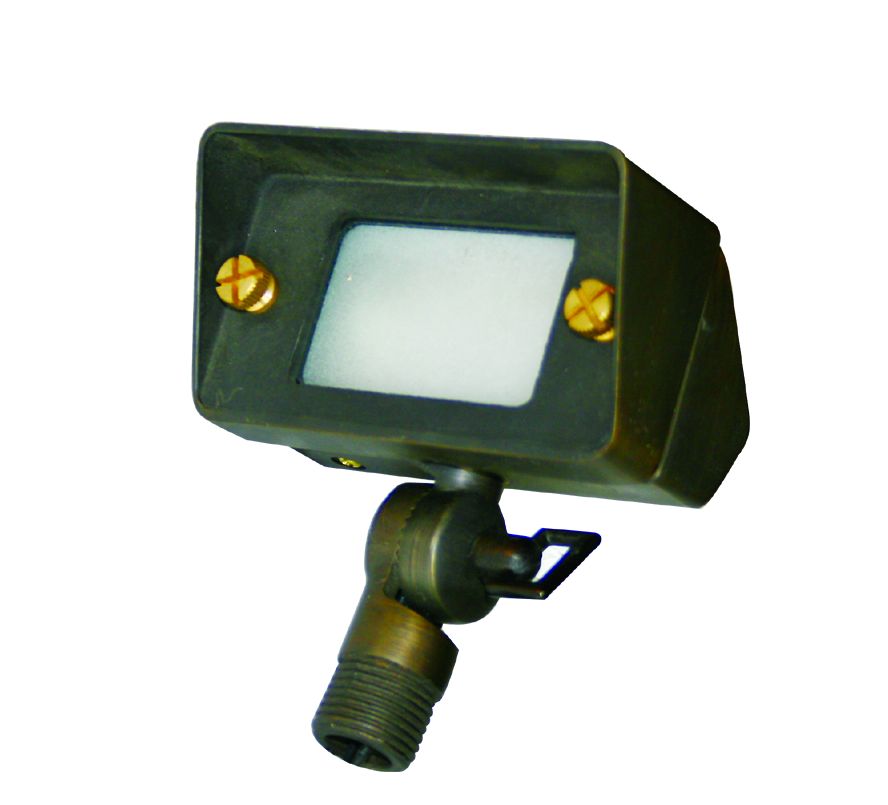

Model AFB2
Die cast flood light featuring a 36" SPT2-16 wire, clear flat glass (frosted, clear, liner) and an accompanying large plastic spike.
(4" x 8" long)
02
Model AFB3
Die cast flood light featuring a 36" SPT2-16 wire, clear flat glass (frosted, clear, liner) and an accompanying large plastic spike.
(2" x 6" long)
03
Model AFB
Die cast flood light featuring a 36" SPT2-16 wire, clear flat glass (frosted, clear, liner) and an accompanying large plastic spike.
(3" x 4-1/2" long)
01 / 03
Model AFB2
Die cast flood light featuring a 36" SPT2-16 wire, clear flat glass (frosted, clear, liner) and an accompanying large plastic spike.
(4" x 8" long)
01
Model AFB2
Die cast flood light featuring a 36" SPT2-16 wire, clear flat glass (frosted, clear, liner) and an accompanying large plastic spike.
(4" x 8" long)
02
Model AFB3
Die cast flood light featuring a 36" SPT2-16 wire, clear flat glass (frosted, clear, liner) and an accompanying large plastic spike.
(2" x 6" long)
03
Model AFB
Die cast flood light featuring a 36" SPT2-16 wire, clear flat glass (frosted, clear, liner) and an accompanying large plastic spike.
(3" x 4-1/2" long)
WELL LIGHTS
Sunken lighting, ideal for illuminating upward from the ground
01

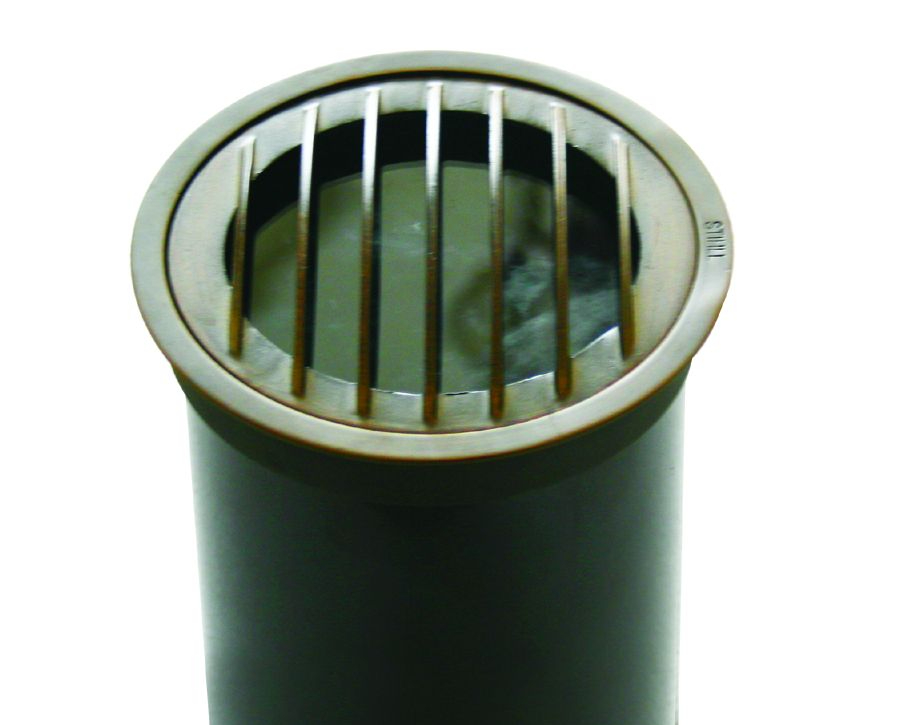

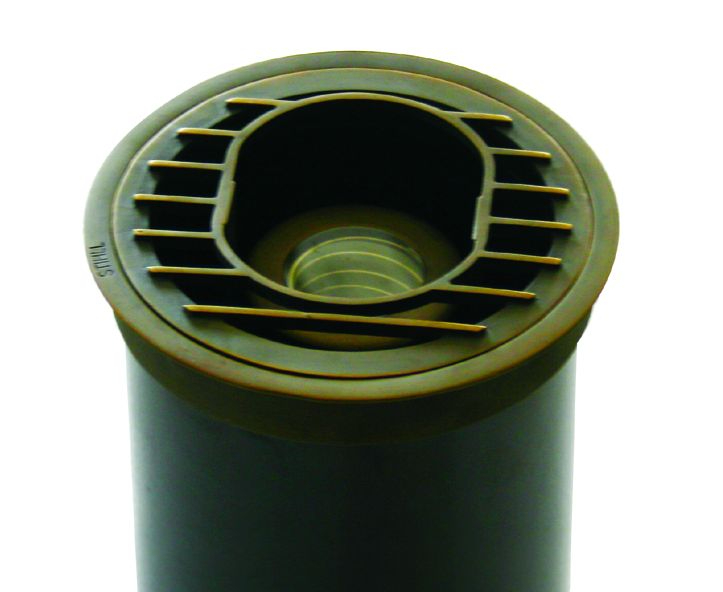

Model WL3
Well light assembly with heavy duty die cast brass cover
*For use with MR16 lamps
02
Model WL7
Well light assembly with heavy duty die cast brass cover
*For use with PAR36 lamps
01 / 02
Model WL3
Well light assembly with heavy duty die cast brass cover
*For use with MR16 lamps
01
Model WL3
Well light assembly with heavy duty die cast brass cover
*For use with MR16 lamps
02
Model WL7
Well light assembly with heavy duty die cast brass cover
*For use with PAR36 lamps
UNDERWATER LIGHTS
Underwater lighting options for illuminating pools or water features
01

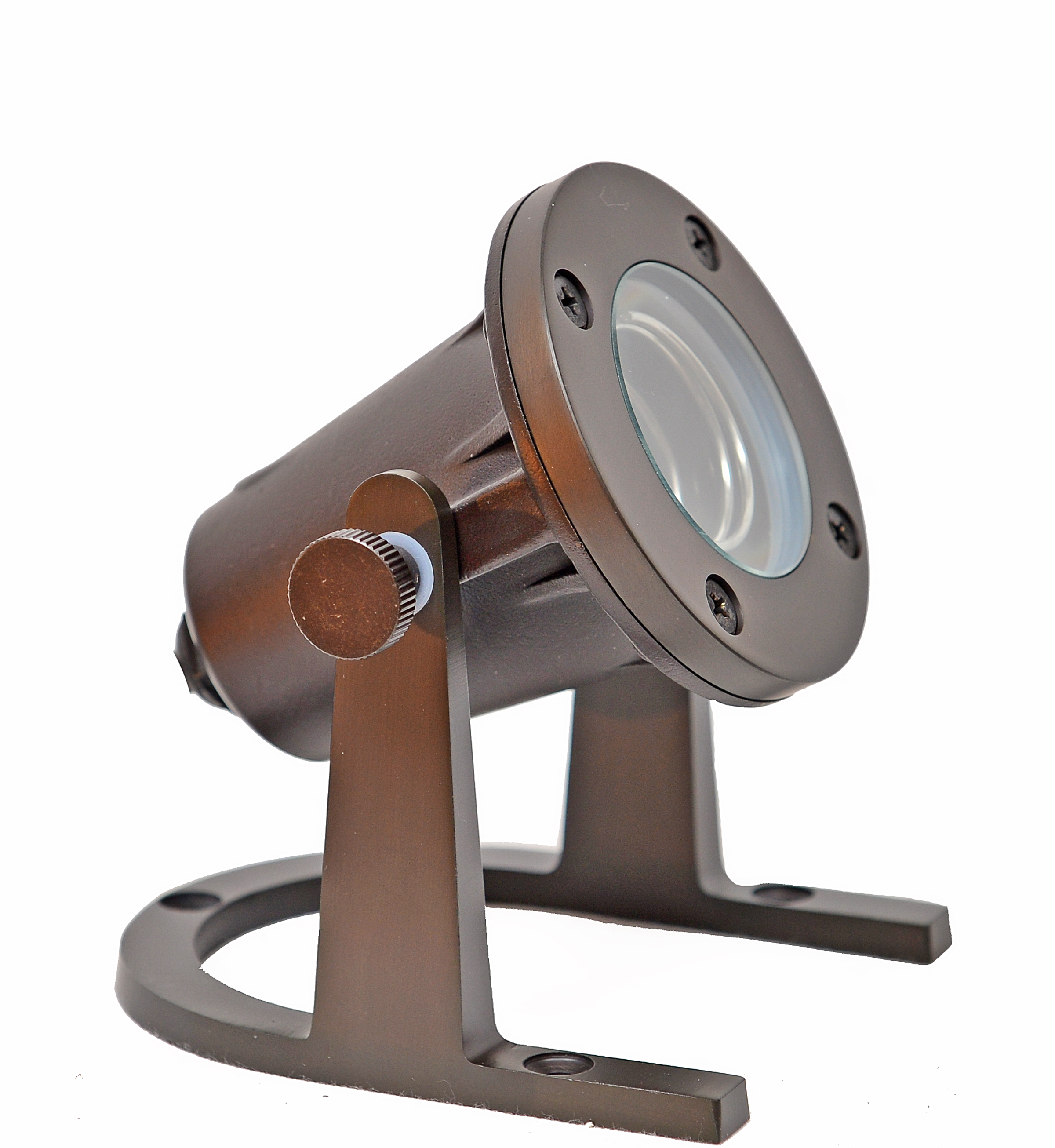

Underwater Light
Heavy duty cast brass
Heat resistant glass lens
Includes adjustable weighted bracket
Watertight sealed gasket
Includes 2 AC-102 silicone filled wired connectors
12v, 25' submersible rated lighting wire lead
Measurements:
Base: 4.42" D x 5" W
Fixture: 3.25" W x 5.25" H
*Uses MR16 LED Lamp
02
Integrated LED Underwater Light
Heavy duty cast brass featuring heat resistant glass lens, cast brass adjustable weighted bracket and watertight sealed gasket
12v fixture, 25' submersible rated lighting wire lead, heat sinks for long life
Measurements:
2"D x2.75" W x 2.5" H
Fixture - 3.25"W x 5.25" H
*Integrated LED - No Lamp Required
01 / 02
Underwater Light
Heavy duty cast brass
Heat resistant glass lens
Includes adjustable weighted bracket
Watertight sealed gasket
Includes 2 AC-102 silicone filled wired connectors
12v, 25' submersible rated lighting wire lead
Measurements:
Base: 4.42" D x 5" W
Fixture: 3.25" W x 5.25" H
*Uses MR16 LED Lamp
01
Underwater Light
Heavy duty cast brass
Heat resistant glass lens
Includes adjustable weighted bracket
Watertight sealed gasket
Includes 2 AC-102 silicone filled wired connectors
12v, 25' submersible rated lighting wire lead
Measurements:
Base: 4.42" D x 5" W
Fixture: 3.25" W x 5.25" H
*Uses MR16 LED Lamp
02
Integrated LED Underwater Light
Heavy duty cast brass featuring heat resistant glass lens, cast brass adjustable weighted bracket and watertight sealed gasket
12v fixture, 25' submersible rated lighting wire lead, heat sinks for long life
Measurements:
2"D x2.75" W x 2.5" H
Fixture - 3.25"W x 5.25" H
*Integrated LED - No Lamp Required
PATHLIGHTS
Refined pathway lights to guide walkways
.jpg)
01

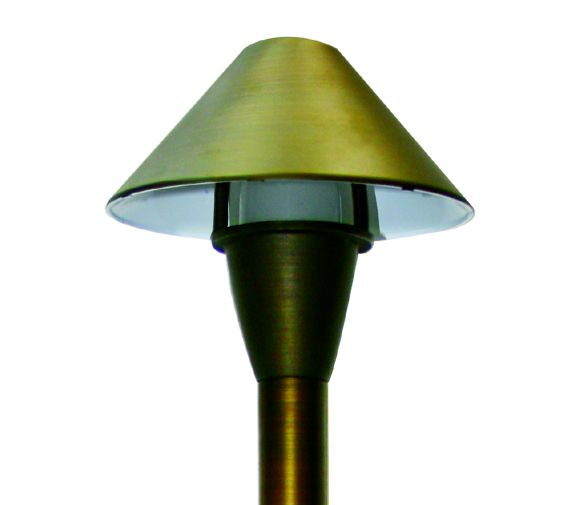

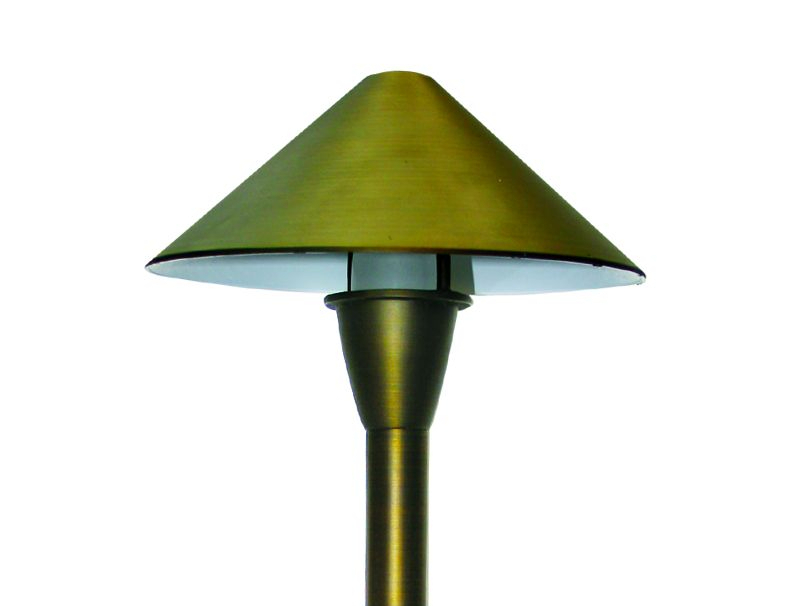

PLS5 (Shade)
Die cast brass (6-3/4" diameter), comes with post
Post options:
18" long SBP-15 Die cast brass OAL
22-3/8" long SBP-15 Die cast brass OAL
.jpg)
02

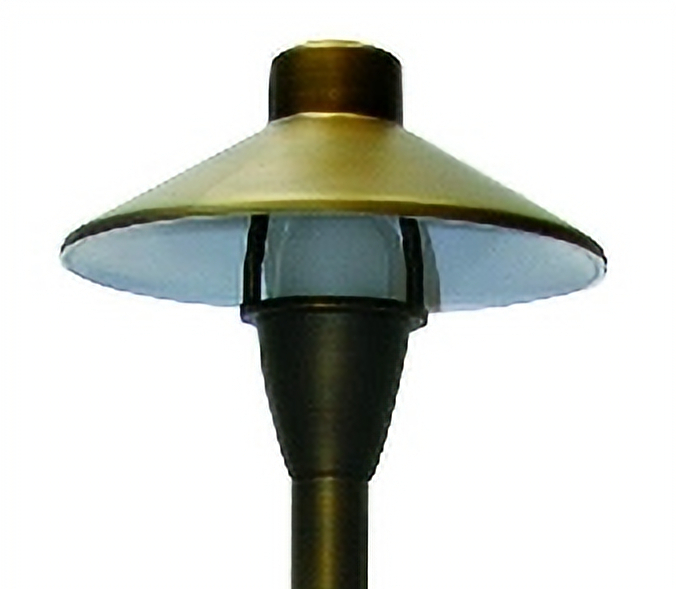

PLS7 (Shade)
Die cast brass (5-3/8"" diameter), comes with post
Post options:
18" long SBP-15 Die cast brass OAL
22-3/8" long SBP-15 Die cast brass OAL
.jpg)
03
PLS8 (Shade)
Die cast brass (8" diameter), comes with post
Post options:
18" long SBP-15 Die cast brass OAL
22-3/8" long SBP-15 Die cast brass OAL
.jpg)
04

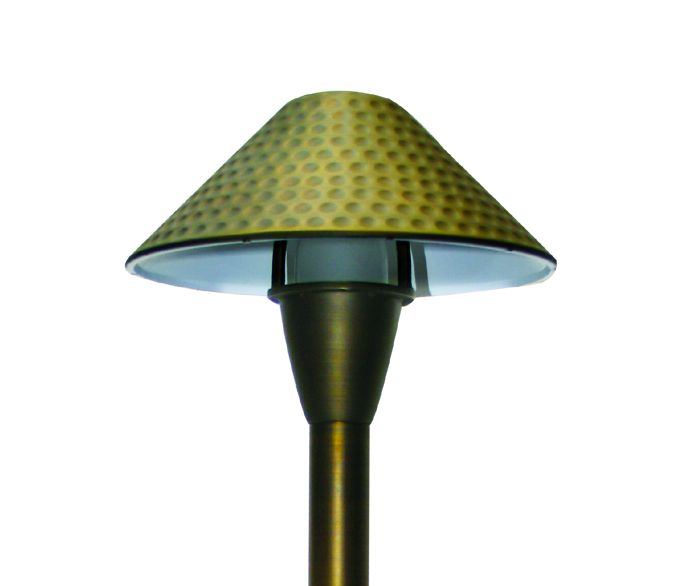

PLS9 (Shade)
Die cast brass (6-3/4" diameter), comes with post
Post options:
18" long SBP-15 Die cast brass OAL
22-3/8" long SBP-15 Die cast brass OAL
05

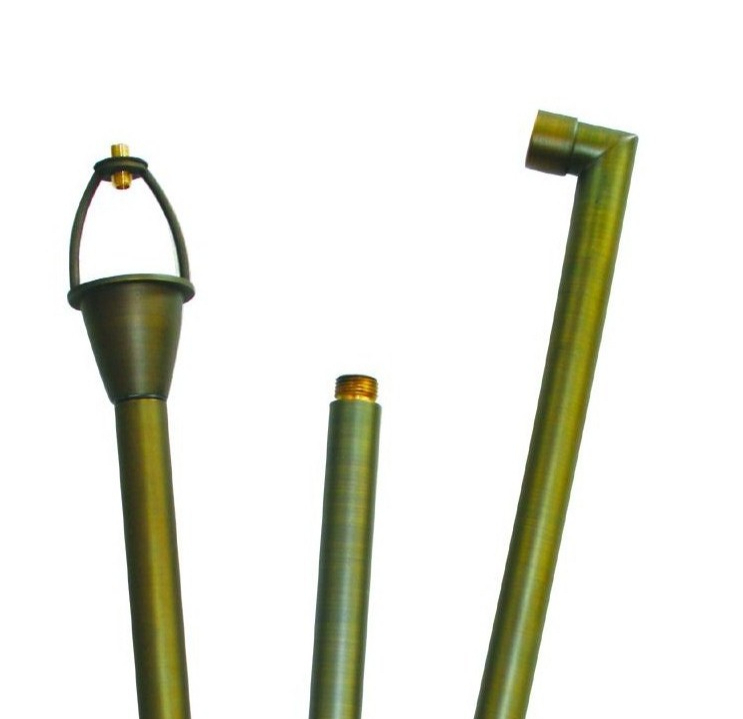

Path System Posts
SBP-15 die cast post: 18" long, comes with 36" SPT2-16 cable and plastic spike
SBP-18 die cast post: 22-38" long, comes with 36" SPT2-16 cable and plastic spike
90° post: 24" long riser (for down light application
06

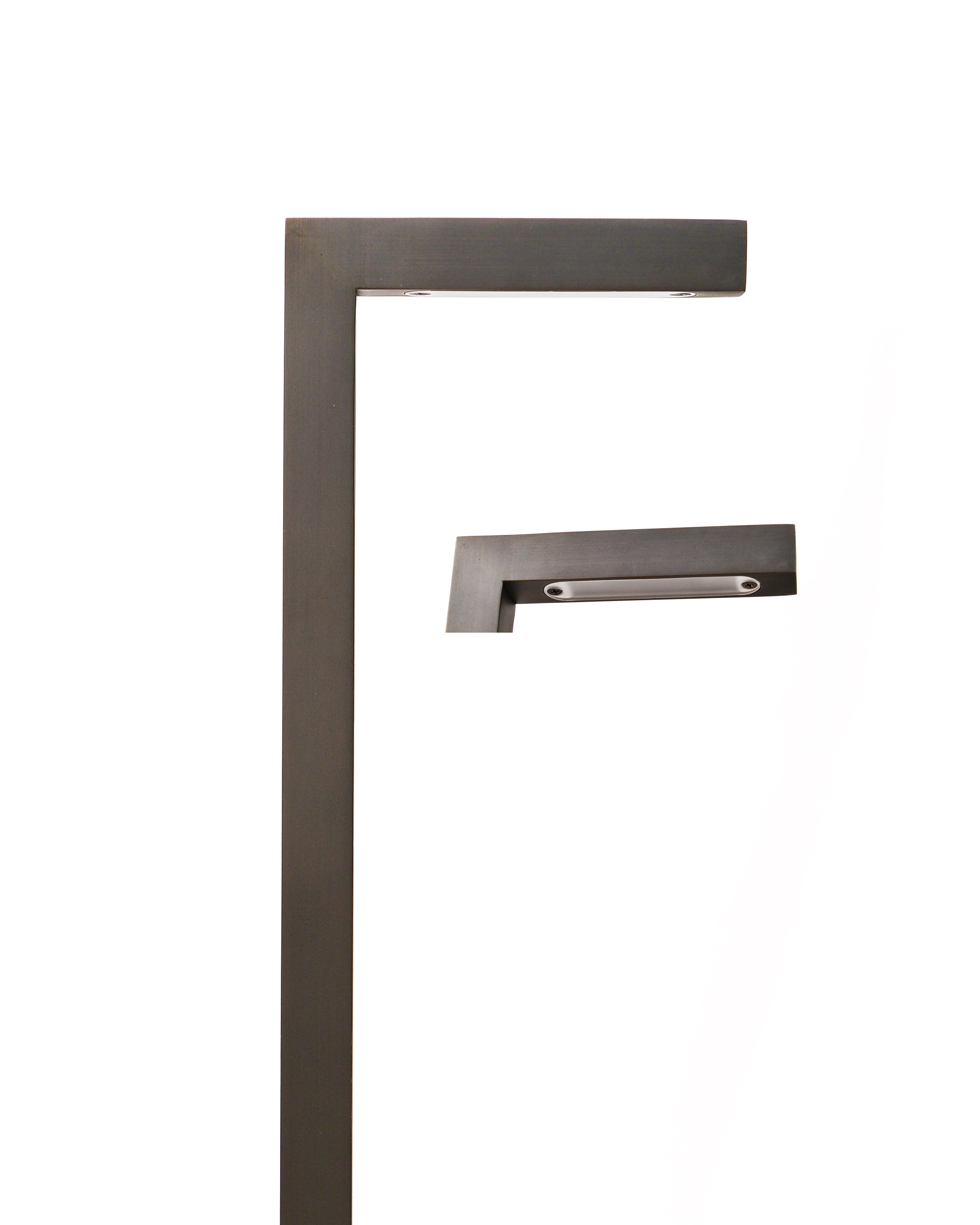

CP Square Path
Solid brass square (90°) path light made of antique bronze with 12v 2w LED module (field serviceable)
L70 rating @50k hours
3 year warranty against defects
Black wire lead, 18 gauge, 36 in long with oversized stake
07
CP Round Path Light
Cast brass round path light made of antique bronze, 12v integrated 4w LED module (field serviceable)
Beam spread 5ft 360° from post, 2700K, 82 CRI
L70 rating @50K hours
3 year warranty against defects
Black wire lead, 18 gauge, 36 in, with an oversized stake
08
Hybrid Path Light
Solid cast brass with a natural bronze finish
Integrated 4 watt, 3000K, 85lm, Cree LED
Light projection area approximately 3-4" x 4-5"
Comes with heavy duty spike and available in 2 options
09

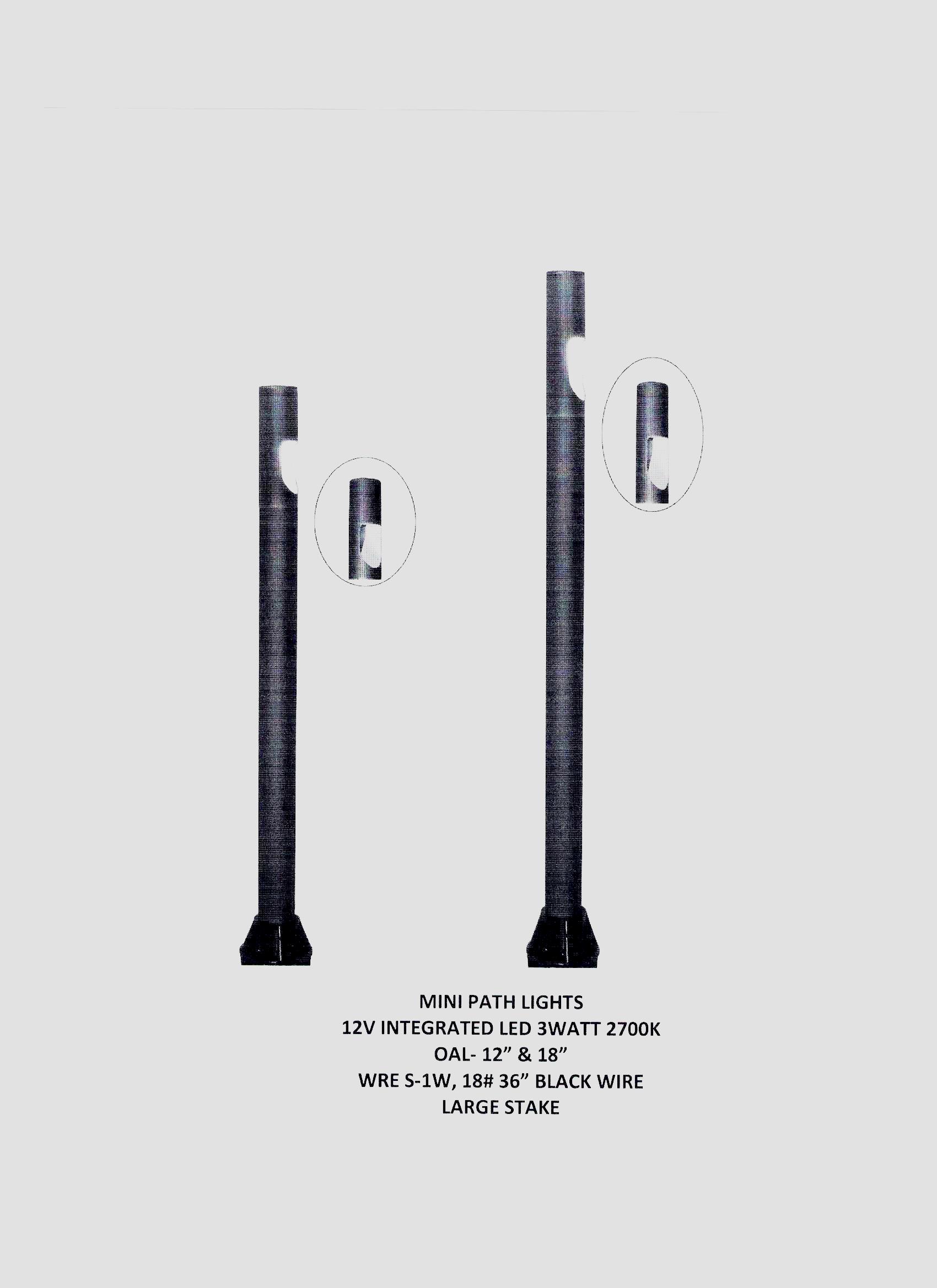

Mini Path Light
12v integrated 3W LED module 2700K (field serviceable)
L70 rating @50K hours
3 year warranty against defects
Black wire lead, 18 gauge. 36 inches with oversized stake
10

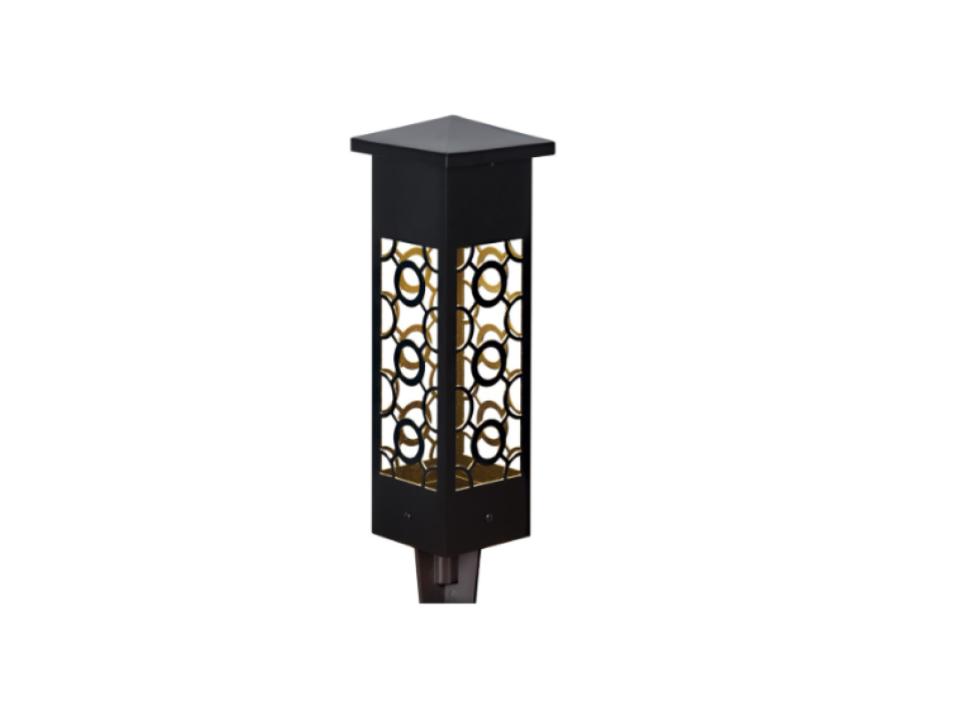

CP-MONA223
Material: Aluminum Textured Black or Bronze Finish, 5-1/8”x5-1/8”x 14-3/”, SPT-1W 18# 36” Black Wire with Large Stake
*(Requires 12VMR16 LED)
01 / 10
PLS5 (Shade)
Die cast brass (6-3/4" diameter), comes with post
Post options:
18" long SBP-15 Die cast brass OAL
22-3/8" long SBP-15 Die cast brass OAL
01
PLS5 (Shade)
Die cast brass (6-3/4" diameter), comes with post
Post options:
18" long SBP-15 Die cast brass OAL
22-3/8" long SBP-15 Die cast brass OAL
02
PLS7 (Shade)
Die cast brass (5-3/8"" diameter), comes with post
Post options:
18" long SBP-15 Die cast brass OAL
22-3/8" long SBP-15 Die cast brass OAL
03
PLS8 (Shade)
Die cast brass (8" diameter), comes with post
Post options:
18" long SBP-15 Die cast brass OAL
22-3/8" long SBP-15 Die cast brass OAL
04
PLS9 (Shade)
Die cast brass (6-3/4" diameter), comes with post
Post options:
18" long SBP-15 Die cast brass OAL
22-3/8" long SBP-15 Die cast brass OAL
05
Path System Posts
SBP-15 die cast post: 18" long, comes with 36" SPT2-16 cable and plastic spike
SBP-18 die cast post: 22-38" long, comes with 36" SPT2-16 cable and plastic spike
90° post: 24" long riser (for down light application
06
CP Square Path
Solid brass square (90°) path light made of antique bronze with 12v 2w LED module (field serviceable)
L70 rating @50k hours
3 year warranty against defects
Black wire lead, 18 gauge, 36 in long with oversized stake
07

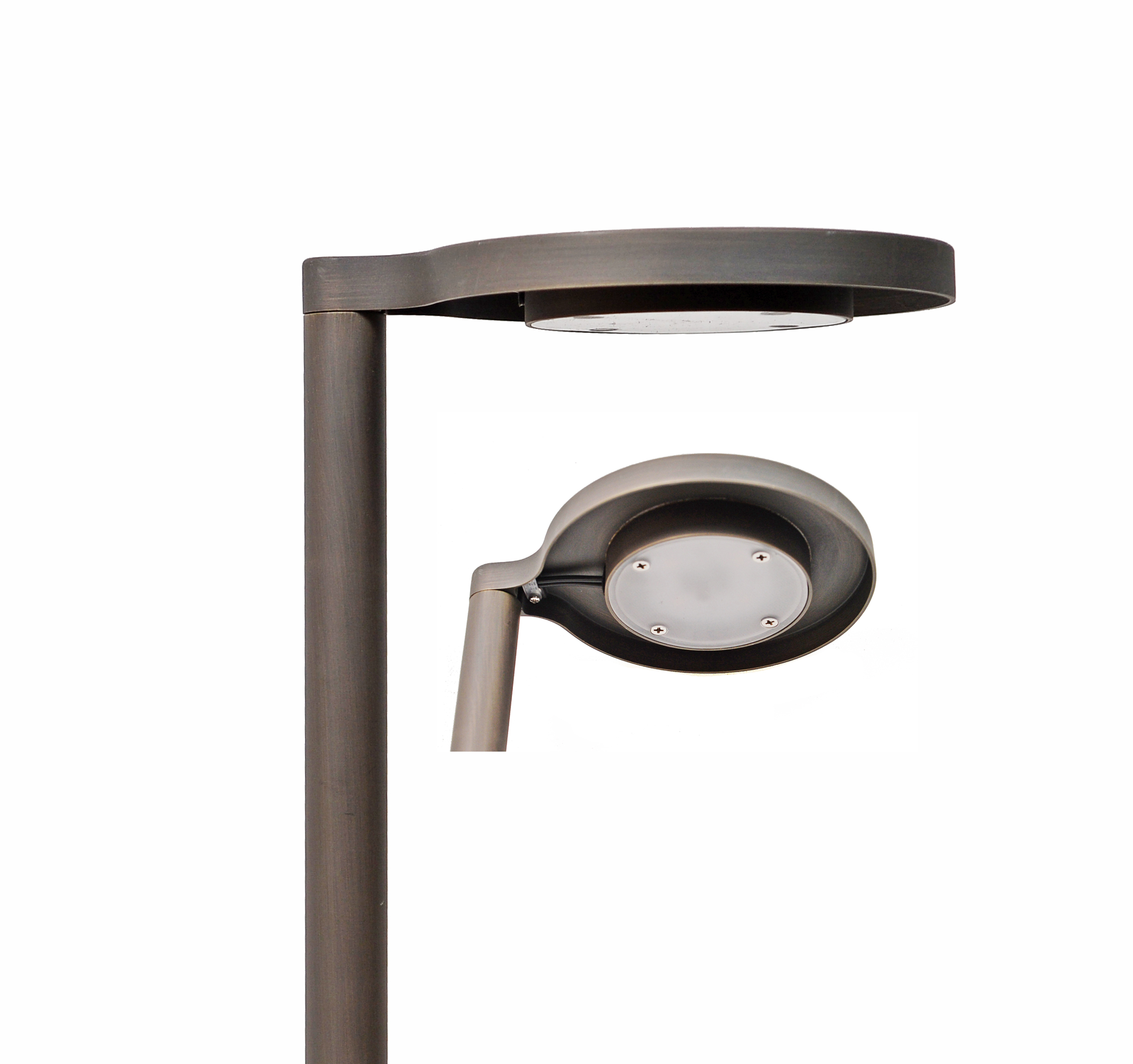

CP Round Path Light
Cast brass round path light made of antique bronze, 12v integrated 4w LED module (field serviceable)
Beam spread 5ft 360° from post, 2700K, 82 CRI
L70 rating @50K hours
3 year warranty against defects
Black wire lead, 18 gauge, 36 in, with an oversized stake
08
Hybrid Path Light
Solid cast brass with a natural bronze finish
Integrated 4 watt, 3000K, 85lm, Cree LED
Light projection area approximately 3-4" x 4-5"
Comes with heavy duty spike and available in 2 options
09
Mini Path Light
12v integrated 3W LED module 2700K (field serviceable)
L70 rating @50K hours
3 year warranty against defects
Black wire lead, 18 gauge. 36 inches with oversized stake
10
CP-MONA223
Material: Aluminum Textured Black or Bronze Finish, 5-1/8”x5-1/8”x 14-3/”, SPT-1W 18# 36” Black Wire with Large Stake
*(Requires 12VMR16 LED)
LED LAMPS
LED lamps compatible with Cucamonga Products lighting
TRANSFORMERS
Reliable low voltage transformers to support your lighting needs
Get the Full Catalog
Request a physical catalog or detailed specifications for specific items. Cucamonga Products can provide comprehensive technical data sheets and product brochures for all professional-grade outdoor lighting solutions upon request.
bottom of page
